LU05L

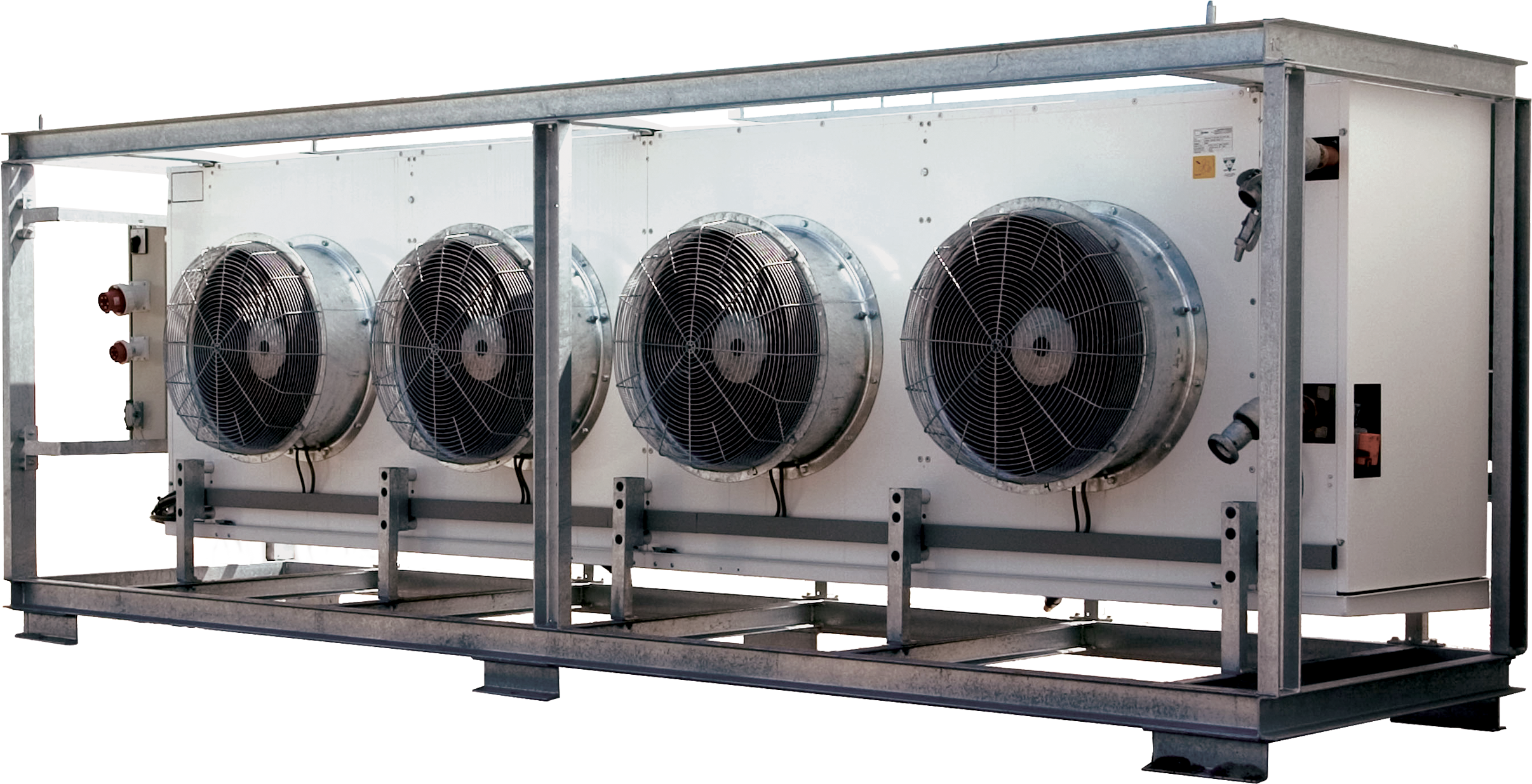

Water-cooled ventilation unit with a 50 kW cooling capacity, fitted with a ventilation control. The frequency controlled unit has a defrost device, making it suitable for low-temperature applications as well. This system can also be used as a heater (capacity: 29 kW). This low temp airhandler is ready for use and easy to install with its quick-connectors. The unit is easy to move with a pallet cart or forklift.
LU05L
Downloads
Technical specifications
Cooling capacity
50 kW
Heating capacity
29.4-14.7 kW
Current (nominal)
16 A
Capacity steps
Frequentie geregeld
Max. air flow
52000 m³/h
External (Air) pressure
130 Pa
Voltage
400 V
Recommended fuses
16/63 A
Phases
3 + A
Length
4900 mm
Width
1200 mm
Height
1750 mm
Weight
1600 kg
Sound level (at 10 m)
60 dB(A)
